Static pressure high-speed railway bridge pad machine

Product Overview

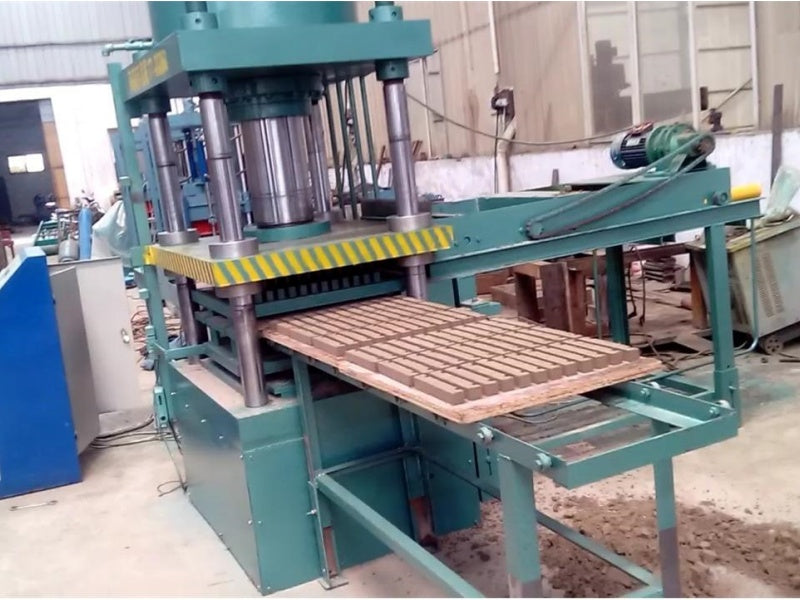

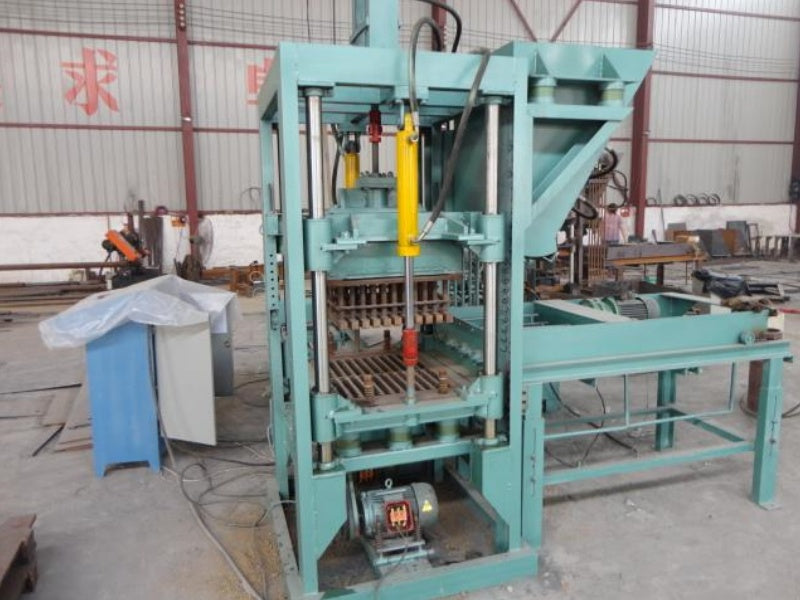

The static pressure high-speed railway bridge pad machine is a four-column press machine with hydraulic transmission. It is a new model with double-sided press machine and high energy saving. The machine adopts optimized hydraulic transmission, which has the characteristics of power saving, low noise, low failure rate, etc.; imported PLC fully automatic control system, unmanned operation throughout the process, high degree of automation, low labor intensity of workers, thus greatly improving the output and quality of cement pad production. The Xinyue static pressure pad machine has stable force, high pressure and high degree of automation in the process of pressing cement pads. Therefore, the finished product has the characteristics of good product quality, high strength, high yield rate, beautiful and standard appearance and size. The hydraulic station system adopts a unique cooling system, which makes the oil temperature not easy to rise, and the oil circuit has been redesigned with a fast system, making operation more worry-free and saving more labor costs.

Application Scope

Mainly used for cast-in-place buildings, highways, railways, bridges and ancient buildings, reinforced concrete protective layer pads, beam supports, standard pad supports for steel bar layer spacing, etc.

Technical Parameters

Molding cycle: 10-15 seconds/time
Excitation force: ≈22KN
Vibration frequency: ≈4500 times/minute
Motor power: 17.95KW
Pallet size: 700×540(mm)
Output: 300,000 pieces (30 pads)
Overall dimensions: 6100×3600×2650
Weight: 4160Kg
