QTY3-5 Block Machine

Product Overview

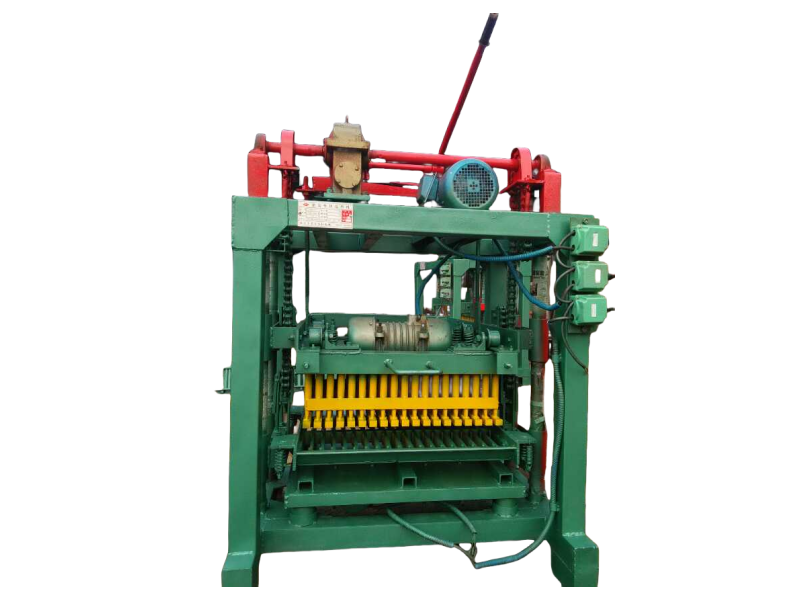

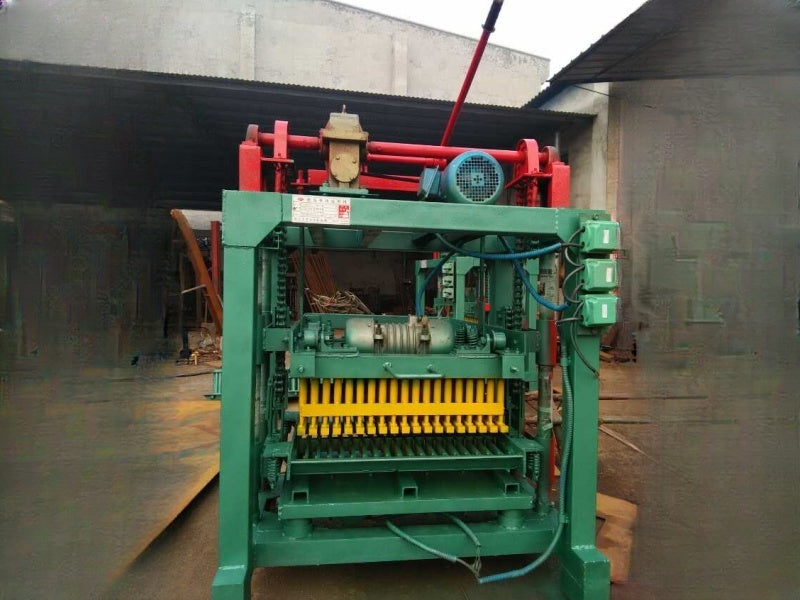

QTY3-15 block machine is a cement block machine that combines hydraulic pressure and vibration. It uses river sand, gravel, slag, shale, coal gangue, fly ash and other materials as main raw materials, adds a small amount of cement, presses and forms the blocks, and can be used after natural curing. The block machine is equipped with a secondary feeding device. The block machine can not only produce blocks and wall bricks of various specifications, but also produce a variety of products such as colored pavement bricks, curbstones, tree pit stones, lawn bricks, slope protection bricks, etc. The block machine is produced with German core technology, and the mold is made of steel technology. After multiple processes such as fine processing, wire cutting, and heat treatment, it is durable and has an international status. The block machine has a reasonable matching of pressure and vibration, and the products are beautiful and strong.

Product Performance

• Block machine frame: Made of high-strength steel and special welding technology, it is strong.
• Block machine guide column: Made of super-strong special steel, chrome-plated surface has good torsion resistance and wear resistance.
• Block machine mold pressure head: mechanical, electrical and hydraulic synchronous drive, the height error of the same pallet product is small, and the product consistency is good.
• Block machine distributor: adopts sensor and hydraulic proportional drive technology, and the distribution is fast and uniform.
• Block machine vibrator: driven by electro-hydraulic technology, multi-source vibration system, can obtain good vibration effect for different raw materials.

Working Principle

It adopts electro-hydraulic technology drive and multi-source vibration system. It generates vertical synchronous vibration by hydraulic drive under computer control. The frequency is adjustable to realize the working principle of low-frequency feeding and high-frequency forming, and can obtain good vibration compaction effect for different raw materials. Block machine control system: fully automatic PLC computer control, human-machine interface, electrical appliances adopt Japanese Mitsubishi and other brands, the control program integrates 15 years of actual production experience, combines international development trends, and is designed and written to meet national conditions. It can be operated without the need for professionals and only requires simple training. The powerful memory can be upgraded.

Technical Parameters

Molding cycle: 10-15 seconds/time

Excitation force: ≈22KN

Vibration frequency: ≈4500 times/minute

Motor power: 17.95KW

Pallet size: 700×540(mm)

Output: 300,000 pieces (30 pads)

Overall dimensions: 6100×3600×2650

Weight: 4160Kg

Application Scope

The block machine can not only produce various specifications of strips and stirrups, but also produce a variety of products such as colored pavement bricks, curbstones, tree pit stones, lawn bricks, slope protection bricks, etc. The block machine is produced with German core technology, and the mold is made of steel technology. After multiple processes such as fine processing, wire cutting, and heat treatment, it is durable and has an international leading position. Due to the reasonable matching of pressure and vibration, the block machine has beautiful products with good strength. It can be stacked after leaving the mold, saving a lot of pallets.
