Product Overview

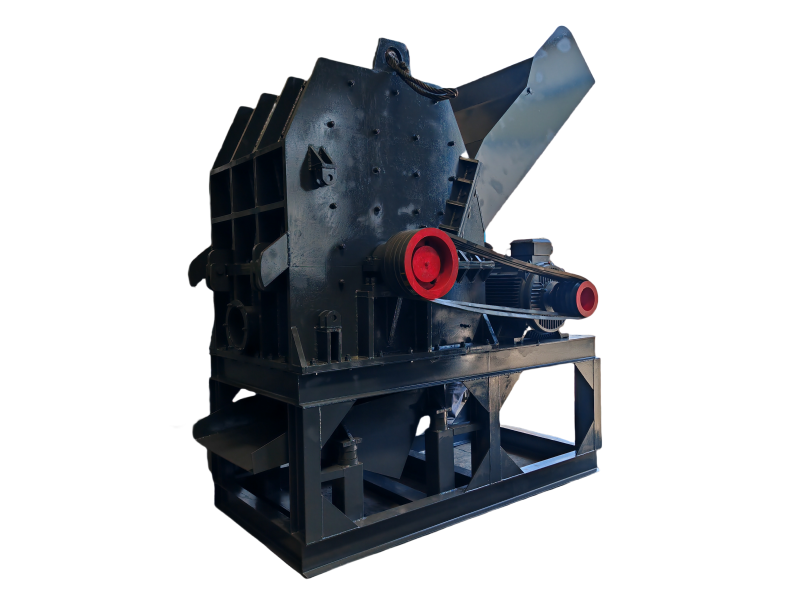

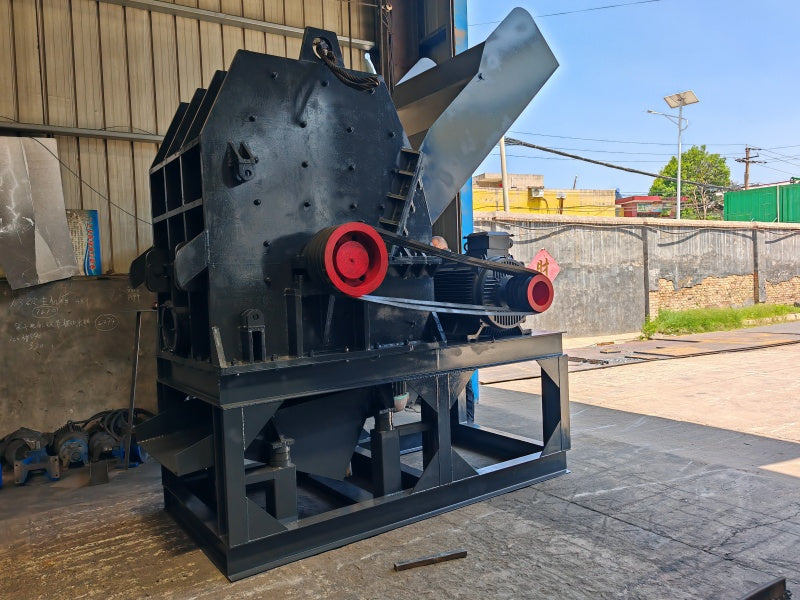

The oil filter crusher can also be called (oil filter pulverizer). It is a crusher for crushing oil filters. As we all know, the oil filter contains a lot of waste oil, which cannot be crushed by ordinary crushers. The crusher will generate a lot of heat when it is working normally. In addition, the iron hammer head, the oil filter and the inner wall of the equipment will produce friction, and a large number of sparks will appear. Coupled with the increase in temperature, it will immediately catch fire. Therefore, without design and modification, ordinary crushers are not qualified to crush oil filters. Now, through the joint efforts of all the scientific and technological personnel of our factory and the opinions of customers, we have developed a complete set of special equipment for crushing oil filters.

Scope Of Application

The oil filter crusher is suitable for crushing waste oil filter elements, waste diesel filter elements, and automobile oil filter elements. After the oil filter crusher is disassembled, the upper cover, filter paper, spring, rubber ring, iron can and other items appear. Among them, the upper cover, spring and iron can can be sold as iron, the rubber ring can be sold as rubber, and the remaining filter paper can be used to use the modified oil press to squeeze out the oil, which is quite profitable.

Technical Parameters

Model

400

600

800

Host power(kw)

18.5

37

55

Yield(kg/h)

100-300

300-700

500-1000

land area(m2)

5

7

9

Host size(m)

1.85x1.2x0.92

2.6x1.6x1.25

2.9x2.1x1.5
