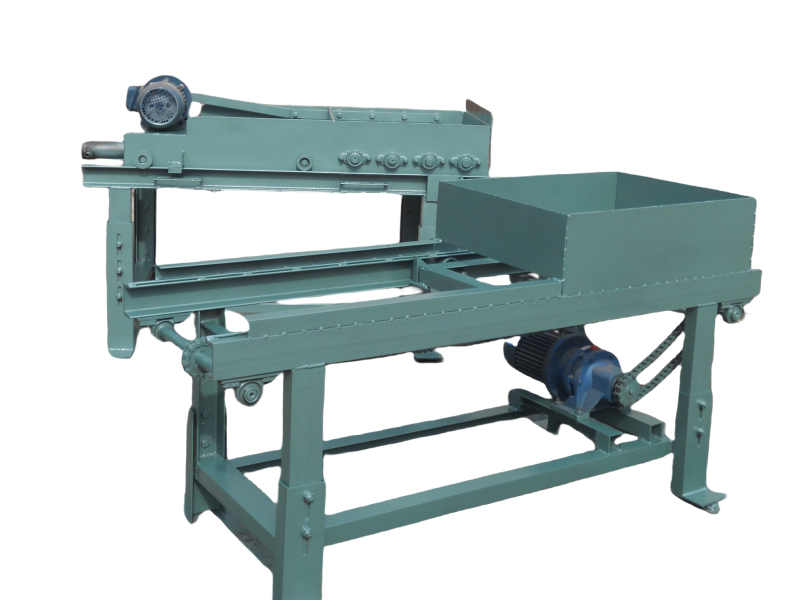

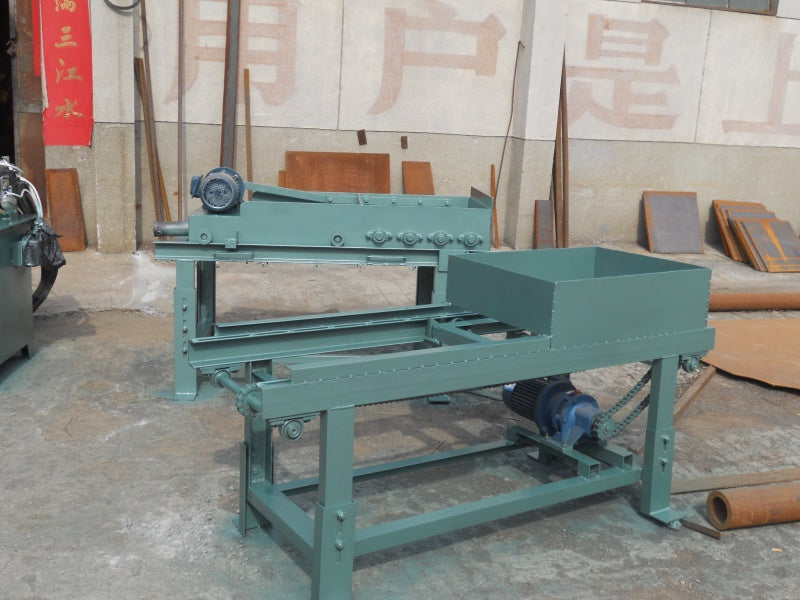

Fully automatic static pressure pad machine

Product Overview

The fully automatic static pressure block machine combines the advantages of various block machines. It is a new model developed for the production and maintenance conditions of small concrete block factories. It can produce ordinary wall blocks of various specifications, achieving a true one-machine-multi-purpose. The fully automatic static pressure block machine mainly produces various special-shaped concrete blocks, steel support.

Features

• The noise is particularly low (within 40 decibels), suitable for working in any urban environment, and the noise is maintained within the required range.
• The pressure, density and external appearance of the finished products produced are superior to those produced by vibration equipment, making it easier for real estate developers to give priority to accepting such products.
• The main unit equipped with this equipment is a national standard four-column machine with excellent quality.
• Multi-purpose use of one machine: Multi-purpose use of one machine means that on the same device, it can not only produce products without holes such as civil supports, stirrups, pads, highway slope protection bricks, urban street bricks, and lawn bricks, but also produce products with holes such as high-speed railways, highways, Bridges, culverts, electric poles, pipe piles, and beam factories. It not only avoids the financial pressure of customers' repeated purchase of equipment investment, but also ensures the diversification of products, providing a solid guarantee for market demand and the interests of pad manufacturers!
• Diversified function switching is available, allowing for free switching between manual, semi-automatic and fully automatic operations.
• The molds equipped are made of special mold steel, with a service life five times that of ordinary molds. They also feature a new generation of automatic pop-up structure, featuring an advanced design concept, no mold jamming, and the thickness of the product can be adjusted freely. They are particularly smooth to use and come with a five-year warranty.
• Compared with vibrating equipment of the same output, it saves 40% of electricity, saving about 22,000 yuan (1 yuan per kilowatt-hour) in electricity fees annually.
• Save unnecessary wage expenses. Semi-automatic operation can be easily done by two women. It is fully automatic and can be easily operated by one person. With the same output of equipment, it can save nearly 60,000 yuan in wages annually.

Application Scope

It is mainly used for cast-in-place buildings, roads, railways, bridges and ancient buildings, reinforced concrete protective layer pad machines, beam supports, standard pad supports for steel bar layer spacing, etc.

Technical Parameters

Molding specifications: 200*30*30 42 strips/mold Larger than the mold of the fully automatic model
300*30*30 30 strips/mold
Molding cycle: 35 seconds/time
Production efficiency: 18000~22000 pieces/shift
Vibration power: 3.3kw
Demolding power: 2.2kw
Pallet size: 900*470*25
Implementation standard: GB/T8533-2001
