Product Overview

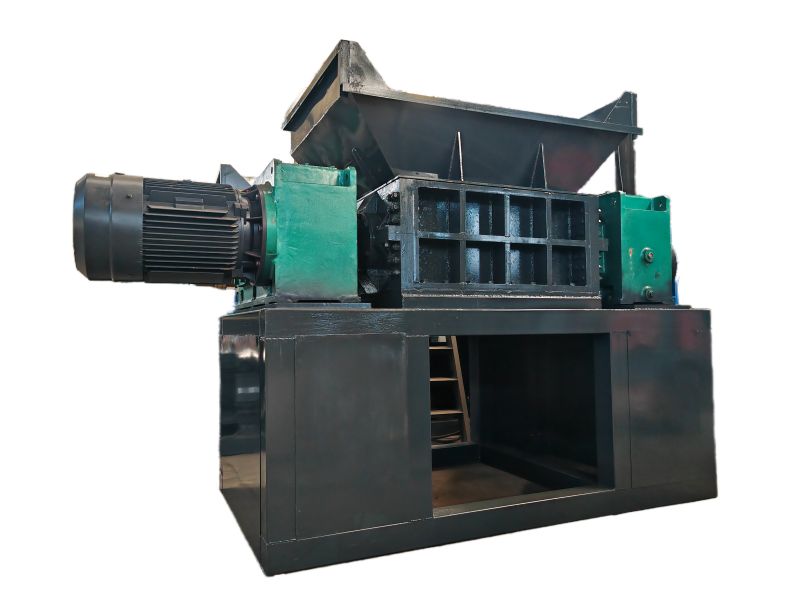

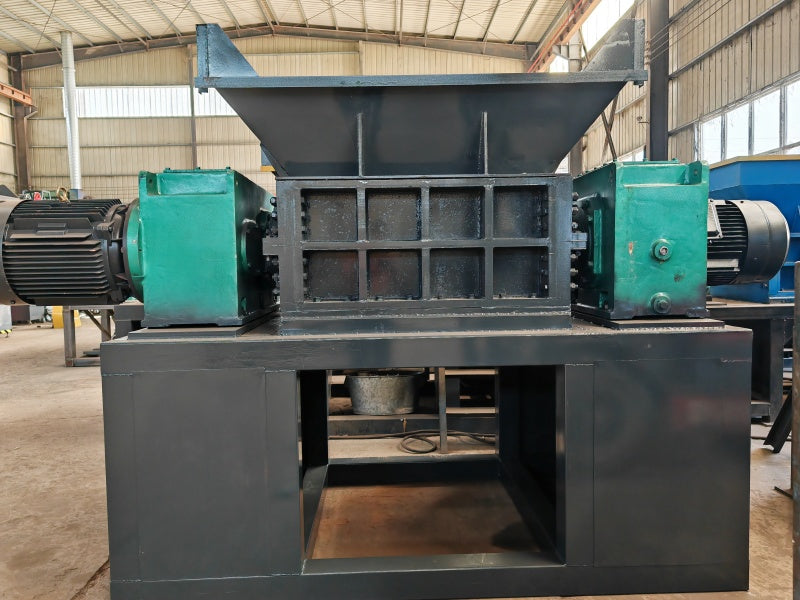

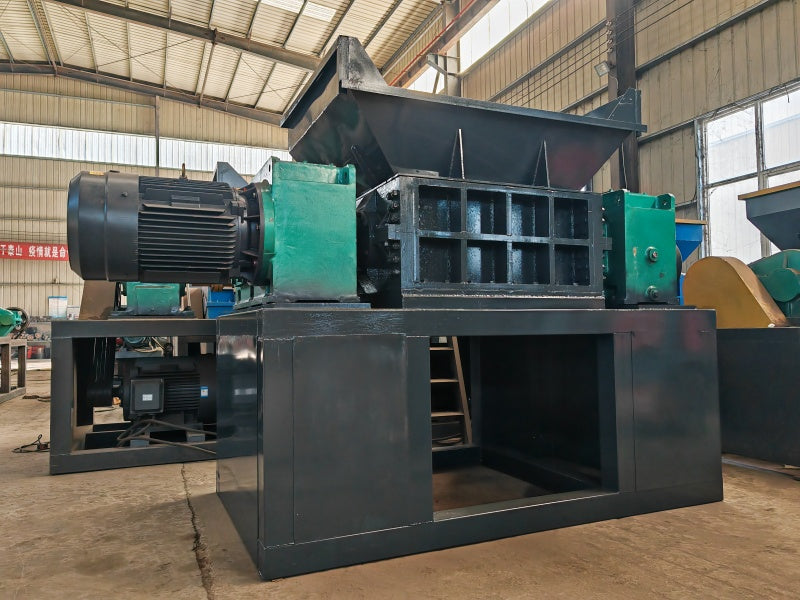

Double-shaft shredder, passed EU CE and uses Siemens motor! Double-shaft shredders all use microcomputer (PC) automatic control system, with start, stop, reverse and overload automatic reverse control functions, with low speed, high torque, low noise and other characteristics. The bearing seat adopts split type, which is easy to disassemble and replace the blade and is suitable for shredding extra large, extra thick and difficult to shred materials.

Suitable for crushing materials

  • Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packaging boxes, packaging barrels
  • Waste home appliances: TV sets, washing machines, refrigerator shells
  • Pipes: large pipes, pipe fittings, PE pipes
  • Waste templates: wooden pallets, plastic pallets, forklift pallets
  • Waste tires: car tires, truck tires
  • Waste metals: car shells, aluminum alloys, waste aluminum castings, engine shells, lead and steel plates with a thickness of less than 5mm
  • Kitchen waste, domestic waste, animal carcasses, RDF derivatives, medical waste, biological orange stalks, garden waste
  • Rubber head materials, paper mill ropes

Technical Parameters

Model JL-2600 JL-1900 JL-1500 JL-1200 JL-1000 JL-600
Spindle power(kw) 4-160*2 4-90*2 4-45*2 4-37*2 4-30*2 4-15*2
Spindle speed(r/min) 16-18 14-16 14-16 18-20 18-20 18-20
Yield(t/h) 25-60 10-25 8-18 6-15 5-10 2-5
Conveyor power(kw) 4-3kw 4-3kw 4-3kw


Number of cutterheads(piece) 40 40 30 28 30 26
Different materials, different numbers of teeth and blades, can be customized
Cutterhead diameter(mm) Φ720 Φ560 Φ530 Φ372 Φ360 Φ260
Crushing particle size(cm) 3-10 3-10 3-10 3-10 3-10 3-10
Silo size(mm) 2425*1400 2300*200 2000*2000 1400*1000 1200*1000 820*900
Overall dimensions(mm) 8200*4000*4300 8000*2500*2400 4000*1700*2400 3200*2000*1900 3000*2000*1900 2600*2000*1900
weight(t) 36 15 12 6 5 2.5
