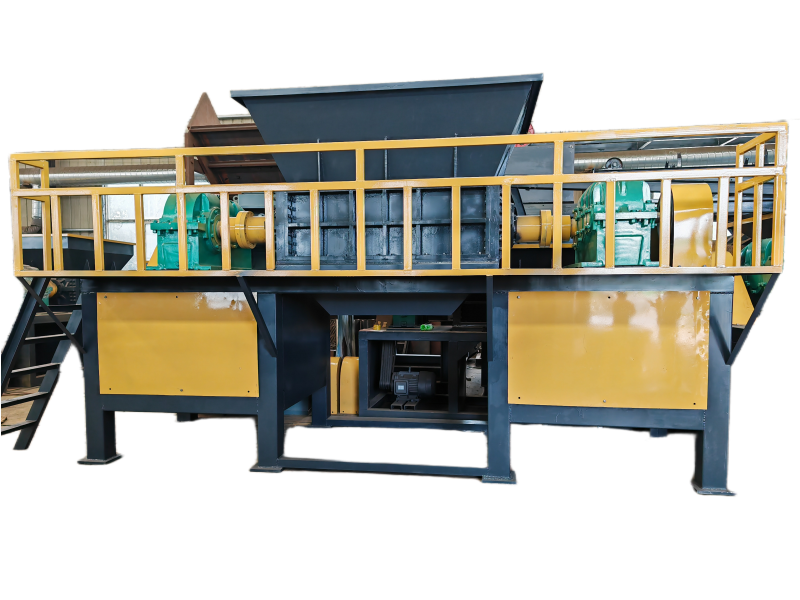

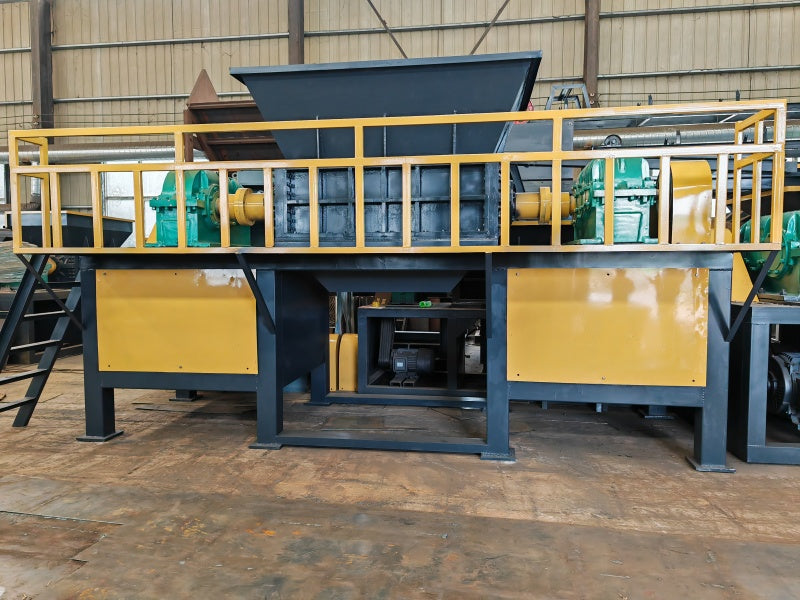

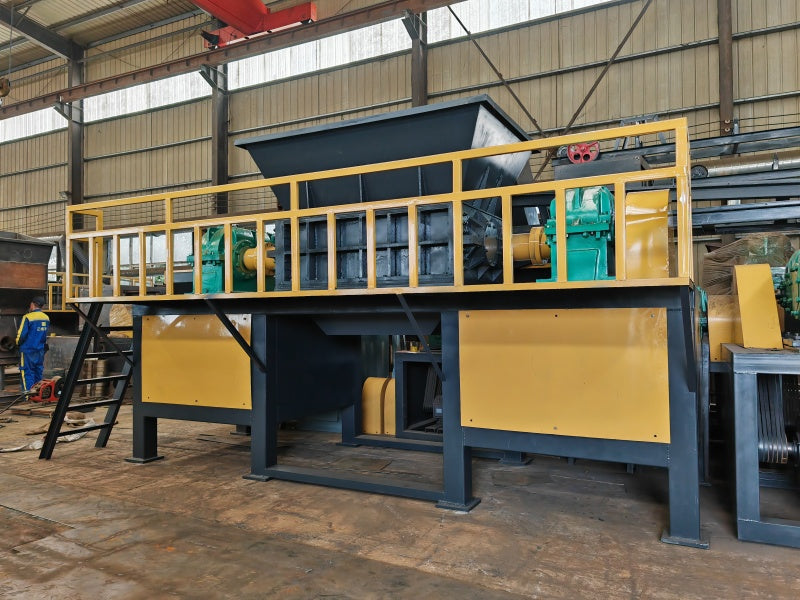

Braid Material Shredder

Product Overview

Braid shredder is a type of pulverizer. It is well known that wire ropes and twisted ropes are very flexible and difficult to be shredded by ordinary pulverizers. The twisted rope pulverizer designed for wire ropes and twisted ropes solves the problem that wire ropes are difficult to shred. This twisted rope pulverizer can not only shred wire ropes, but also shred various paint cans, discarded home appliance shells (plastic shells, metal shells), large pipes, pipe fittings, forklift pallets, tires, packaging barrels, aluminum, copper and iron with a thickness of less than 5mm, waste circuit boards (circuit boards), waste cables and other large-volume waste.

Product Performance

• The blade of the machine is a meshing blade made of high alloy, which has a good crushing effect on any high hardness material.
• T reduction motor drive, saves 20% of electricity compared with other can crushers.
• The machine starts smoothly without too much noise, and it is installed on the ground, so the noise is very small.
• The crusher uses a cloth-type stiffening plate to ensure the strength of the box.
• Conveyor belt feeding equipment can be configured.
• The frame plate is thick, can resist high torque, and is very strong.
• The equipment has the characteristics of low speed, high torque and low noise.
• The thickness of the tool and the number of claws can be replaced according to the different materials of the customer.
• The equipment is of guaranteed quality, easy to adjust, low maintenance cost, economical and durable.
• It adopts microcomputer (PLC) automatic control, with start, stop, reverse and overload automatic reverse control functions.

Working Principle

Working principle of braided rope shredder: the material enters the shredding box through the feeding system, the box is equipped with shredding blades, the push box pushes the material to the vicinity of the blades, the material is torn into small pieces by the shredding blades, squeezed, clamped, etc., and discharged from the screen holes. The size of the shredded material can be customized according to customer requirements.

Technical Parameters
